- Size: Thickness: 0.2-200mm Width:1000mm-3800m
- Place of Origin: SHANGHAI
- Brand Name: YUHAN
- Model Number: 1080A Aluminum Sheet
- Weight: 1000.000 kg
About Us:
1.One of the largest & most trusted company in the field of aluminum sheet,coil,pipe,bar.
2.10 years experience.global presence expanding the business from China to the world.
3.Exported to more than 40 countries and regions.our quality and fame can be assured.
4.Also we provide customized aluminum alloy product machining value-added services according to customers' requirements and drawing.

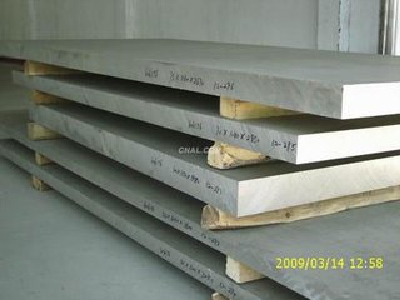

1080A Aluminum Sheet
1000 series is formed by the addition of a small amount of copper in pure aluminum, with excellent forming characteristics, high corrosion resistance, good welding and electrical conductivity. They are widely used in signs, billboards, building exterior decoration, bus body, high factory wall decoration, kitchen sink, lamp, fan, electronic components, chemical apparatus, sheet processing, deep drawing or spinning hollow ware, welding parts, heat exchangers, Bell surface and plate, plates, kitchen utensils, accessories, safety equipment etc.
Type | Alloy Series | Typical Alloy | Temper | Dimension(mm) | Standard | ||
Thickness | Width | Length | |||||
Non-Heat treatable plate & sheet | 1000 series | 1070,1060,1050, 1100,1200,1235 | O,H24,H112 | 0.2~1.0 | 500~1500 | 500~4000 | GB/T3880 EN485 ASTM |
1.1~2.0 | 1000~1800 | 2000~24000 | |||||
2.1~4.0 | 1000~2500 | ||||||
4.0~15 | 1000~2400 | ||||||
15~260 | 1000~3800 | ||||||
tread plate | 1000 series | 1060,1100 | 1.0~4.0 | 1000~1600 | 2000~10000 | GB/T3618 | |
curtain wall sheet | 1000 series | 1060,1100 | 1.5~4.0 | 914~2200 | 1500~5500 | YS/T429.1 | |
* Other alloys are available upon customer demand. |
1000 Series Aluminum Sheet Chemistry composition | |||||||||||||
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | ||
Single | Total | ||||||||||||
1A99 | 0.003 | 0.003 | 0.005 | — | — | — | — | — | — | — | 0.002 | — | 99.99 |
1A97 | 0.015 | 0.015 | 0.005 | — | — | — | — | — | — | — | 0.005 | — | 99.97 |
1A95 | 0.03 | 0.03 | 0.01 | — | — | — | — | — | — | — | 0.005 | — | 99.95 |
1A93 | 0.04 | 0.04 | 0.01 | — | — | — | — | — | — | — | 0.007 | — | 99.93 |
1A90 | 0.06 | 0.06 | 0.01 | — | — | — | — | — | — | — | 0.01 | — | 99.9 |
1A85 | 0.08 | 0.1 | 0.01 | — | — | — | — | — | — | — | 0.01 | — | 99.85 |
1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | — | — | 0.04 | V: 0.05 | 0.03 | 0.03 | — | 99.7 |
1070A | 0.2 | 0.25 | 0.03 | 0.03 | 0.03 | — | — | 0.07 | — | 0.03 | 0.03 | — | 99.7 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | — | — | 0.05 | V: 0.05 | 0.03 | 0.03 | — | 99.6 |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | — | 0.05 | V: 0.05 | 0.03 | 0.03 | — | 99.5 |
1050A | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | — | — | 0.07 | — | 0.05 | 0.03 | — | 99.5 |
1100 | Si+Fe: 0.95 | 0.05~ 0.40 | 0.05 | — | — | — | 0.1 | — | 0.05 | 0.15 | 99 | ||
1200 | Si+Fe: 1.00 | 0.05 | 0.05 | — | — | 0.1 | — | 0.05 | 0.05 | 0.15 | 99 | ||
1235 | Si+Fe: 0.65 | 0.05 | 0.05 | 0.05 | — | — | 0.1 | V: 0.05 | 0.06 | 0.03 | — | 99.35 |
